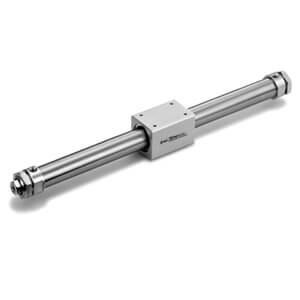

Rodless Cylinder REA Sine Accelerating & Decelarating Magnetically Coupled-Basic Type

SMC Rodless Cylinder
REA0Sine Accelerating and amp Decelarating Magnetically Coupled-Basic Type

Condition: New, Original or Alternate.

Sharing good things


The REA, Sine Rodless Cylinder – Magnetically Coupled accelerates slowly at
beginning stroke and decelerates at end stroke designed for working with
delicate materials such as silicone wafers, magnetic disks or LCD
substrates yet optimizing throughput with speeds of up to 300 mm/sec. The
REA features specially designed U-shaped cushion rings at the cylinder end
caps to prevent hard stops. The corresponding sides of the piston head have
special cushion packing to faciliate smooth acceleration at the start of
stroke. Please note the REA must be used with an external guide to support
the load.

– Bore sizes: 25, 32, 40, 50, 63 mm
– Stroke lengths: 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900,
1000 mm
– Maximum stroke lengths: 4000 mm (25 & 32 bore), 5000 mm (40 bore),
6000 mm (50 & 63 bore)
– Minimum operating pressure: 0.18 MPa (26 psi)
– Speed: 50 ~ 300 mm/sec.

Download REA Datasheet by click the link Datasheet.
