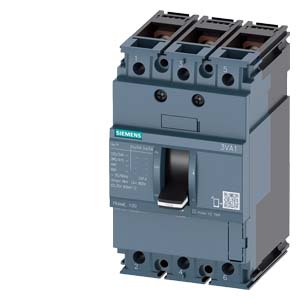

Circuit breaker 3VA1 IEC Frame 100 3VA1025-3ED36-0AA0 Siemens

Siemens 3VA1025-3ED36-0AA0 Circuit breaker 3VA1 IEC Frame 100 Switching capacity class N Icu=25 kA @ 415 V 3-pole, system protection TM210, FTFM, In=25A Overload protection Ir=25 A non-adjustable short-circuit protection Ii=12,8 x In Terminal connection

Product
Article Number (Market Facing Number) 3VA1025-3ED36-0AA0
Product Description circuit breaker 3VA1 IEC frame 100 breaking capacity class N Icu=25kA @ 415V 3-pole, line protection TM210, FTFM, In=25A overload protection Ir=25A fixed short-circuit protection Ii=12.8 x In clamp connection
Product family 3VA Molded Case Circuit Breakers up to 1000 A, IEC
Product Lifecycle (PLM) PM300:Active Product
Price data
Price Group 12P
List Price Show prices
Customer Price Show prices
Surcharge for Raw Materials None
Metal Factor LBO—–
Delivery information
Export Control Regulations AL : N / ECCN : EAR99
Standard lead time ex-works 5 Day/Days
Net Weight (kg) 1,014 Kg
Product Dimensions (W x L x H) Not available
Packaging Dimension 92,00 x 150,00 x 116,00
Package size unit of measure MM
Quantity Unit 1 Piece
Packaging Quantity 1
Additional Product Information
EAN 4042948819814
UPC 804766431609
Commodity Code 85362010
LKZ_FDB/ CatalogID LV10.1
Product Group 5375
Country of origin Czech Republic
Compliance with the substance restrictions according to RoHS directive Since: 01.04.2014
Product class C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation Yes
Classifications
Version Classification
eClass 5.1 27-37-04-09
eClass 6 27-37-04-09
eClass 7.1 27-37-04-09
eClass 8 27-37-04-09
eClass 9 27-37-04-09
eClass 9.1 27-37-04-09
ETIM 4 EC000228
ETIM 5 EC000228
ETIM 6 EC000228

Overview

The new 3VA circuit breakers set new standards in terms of flexibility and variety of modular accessories. Standardized accessories suitable for use with several sizes of circuit breaker from all the 3VA ranges help to cut costs and save installation time.

3VA1 molded case circuit breakers

The new 3VA1 molded case circuit breakers reliably perform all the tasks required for line protection and starter protection.

Features

The key features of the 3VA1 series are:

  • Compact design
  • Depending on size: 1-pole to 4-pole versions
  • Depending on size: Breaking capacity of 16 kA … 70 kA at 415 V, 3 or 4-pole breakers and 36 kA at 240 V,1-pole breakers
  • Fixed version, plug-in version
  • Thermal-magnetic trip units
  • AC/DC applications
  • No derating up to +50 °C
  • Modular and easy-to-fit internal accessories with diverse functions
  • Uniform accessories platform across all 3VA molded case circuit breakers

3VA2 molded case circuit breakers

The new 3VA2 molded case circuit breakers reliably perform all the tasks required for line protection, generator protection, motor protection and starter protection.

This series has been developed for applications with inceased requirements:

  • Increased breaking capacity
  • Very good selective protection response
  • Integrated measurement function
  • Connection to a fieldbus communication system

Features

The most important features of the 3VA2 series are:

  • Compact design
  • 3 and 4-pole versions
  • Four breaking capacity classes from 55 kA … 150 kA
  • Fixed-mounting, plug-in technology, draw-out technology
  • Depending on size: Selective protection response at rated operating current interval 1: 2.5
  • Electronic Trip Units
  • Retrofit communication for ETU 5-series and 8-series
  • Depending on the ETU: Integrated measurement function
  • AC applications
  • No derating up to +50 °C
  • Modular and easy-to-fit internal accessories with diverse functions
  • Uniform accessories platform across all 3VA molded case circuit breakers
