Description

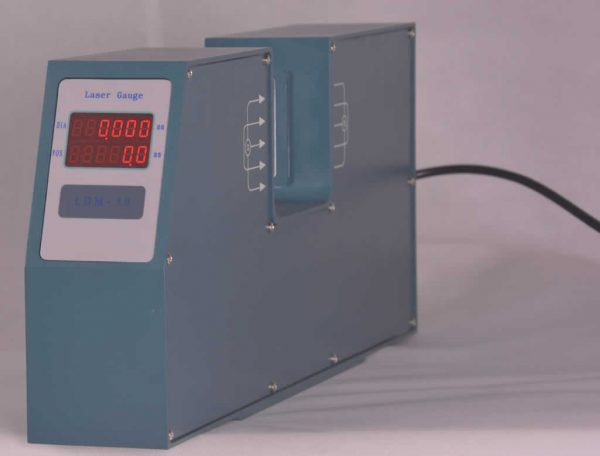

LDM-30E Non-contact laser scanning diameter measurement tool
LDM-30E is a high-accuracy laser scanning diameter measurement instrument, Non-contact measurement system for wire & cable production, accurately, reliably measure insulation diameter to maximize product quality and reduce production scrap.
The LDM-30E measurement tool is designed to effectively measure all-around, wire and cable with solid or stranded conductors, and adjusting the extruder screw or traction speed, to control the outside diameter of the detected object.
The gauge includes features below.
- Easily integrate into your production environment with built-in flexible communications.
- Benefit from compact design for installation flexibility on your production line.
- Intelligent technology that’s engineered for the highest accuracy, performance, and return on value.
- Compact design meets broader installation requirements.
- Non-contact laser diameter measurement, high speed, high accuracy, and good repeatability.
- Real-time outside diameter display, improve quality control and production efficiency, reduce the waste of materials.
- Various digital and analog control signal functions, to achieve fully automated production.
- Various preset functions, nominal value, the upper and lower tolerance, alarm control presets, easy to operate.
- Standard data port connection ready, compatible software for data analysis development convenience.
The gauge applications include:
- Optical Fiber
- Glass Tube
- Plastic Tube
- Transparent Cup
- Bearing
- Shaft
- Spherical Wire
- Outer Diameter Of Workpiece And Size Measurements.
Technical Parameters (Specifications)
| Model | LDM-30E | LDM-50 | LDM-100B | LDM-150 | LDM-210 | LDM-380 |
| Measuring Range | 0.2-25mm | 0.2-45 mm | 0.2-95 mm | 0.2-145 mm | 0.2-205 mm | 0.2-375 mm |
| Accuracy | ±0.001 mm | ±0.002 mm | ±0.002 mm | ±0.01 mm | ±0.01 mm | ±0.02 mm |
| Repeatability | 0.5 um | 0.5 um | 0.5 um | 1 um | 1 um | 2 um |
| Resolution | 0.001 mm | 0.001 mm | 0.001 mm | 0.001 mm | 0.001 mm | 0.001 mm |
| Power Supply | 220VAC ±15% 50/60Hz | |||||
| Working Temperature | -10-40 Degree C | |||||
| Humidity | <85% RH | |||||
| Com Port | RS485 Modbus/Profibus ( Option ) | |||||
| Transparent Measurement | Option | |||||
| Analogs Output | 16 Bit 10VDC (option) | |||||
| Relay Output | 2 | |||||
| Dimension | 49x20x9 cm | 49x20x9 cm | 62x25x6 cm | 92x29x10 cm | 121x36x9 cm | 45x50x9 cm (x2) |
Options
1. DDC7200 Display Unit.
2. Support stand for Lab usuage.
3. V-sharp support for detected object.
