SINAMICS V20 200-240V1AC-10/ 10% 47-63Hz Rated power 1.1 kW with 150% overload for 60 sec. Integrated filter C2 I/O interface: 4 DI, 2 DO, 2 AI, 1 AO Fieldbus: USS/MODBUS RTU with built-in BOP Degree of protection IP20/UL Op Variable: FSB 140x 160x 165 (BxHxD) 6SL3210-5BB21-1AV0_datasheet_en

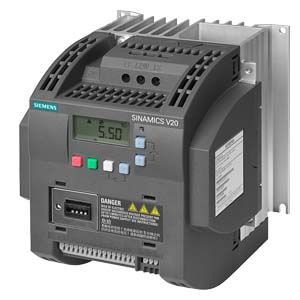

SINAMICS V20 basic converters Overview
SINAMICS V20 – The cost-effective, reliable and easy-to-use converter for basic applications
Today, in an increasing number of applications in plant and machinery construction, individual automation and drive solutions are demanded that automate simple motion sequences with low associated requirements.
The compact SINAMICS V20, the basic performance converter, offers a simple and cost-effective drive solution for these types of applications. SINAMICS V20 sets itself apart with its quick commissioning times, ease of operation, robustness and cost-efficiency.
With eight frame sizes, it covers a power range extending from 0.12 kW to 30 kW (0.16 hp to 40 hp).
SINAMICS V20 keeps engineering and commissioning costs as well as those in operation as low as possible. To increase energy efficiency, the converter is equipped with a control technique to achieve optimum energy efficiency through automatic flux reduction. Not only this, it displays the actual energy consumption and has additional, integrated energy-saving functions. This allows energy consumption to be slashed drastically.
