Description

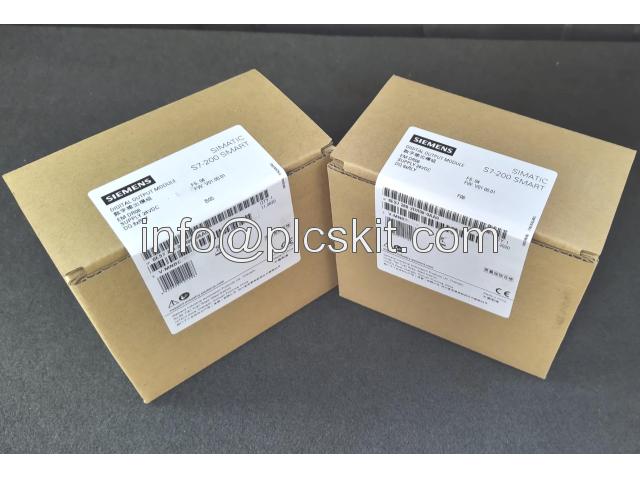

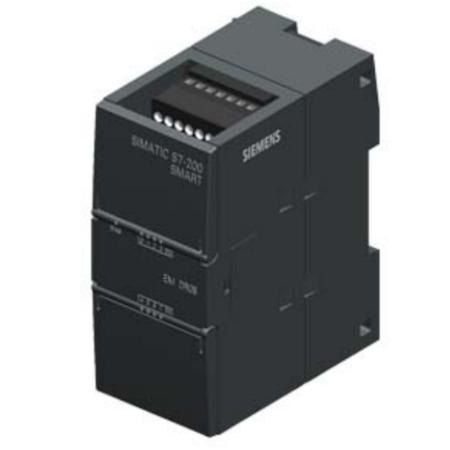

SIMATIC S7-200 SMART PLC Digital output SM DR08 6ES7288-2DR08-0AA0
6ES72882DR080AA0 6ES 7288-2DR08-0AA0
S7-200 SMART PLC SM DR08 Digital output Module
Model No.: SM DR08, Only used for S7-200 SMART PLC
Output: 8 Relay outputs 2 A
6ES72882DR080AA0_datasheet_enSiemens SIMATIC S7-200 SMART PLC Extension modules
| Extension module (EM) | Order No. | |
| EM DI08 | DIGITAL INPUT SM DI08, 8DI, 24V DC | 6ES72882DE080AA0 |
| EM DR08 | DIGITAL OUTPUT SM DR08, 8 DO, RELAY | 6ES72882DR080AA0 |
| EM DR16 | DIGITAL I/O SM DR16, 8DI/8DO RELAY | 6ES72882DR160AA0 |
| EM DR32 | DIGITAL I/O SM DR16, 16DI/16DO RELAY | 6ES72882DR320AA0 |
| EM DT08 | DIGITAL OUTPUT SM DT08, 8 DO, 24V DC | 6ES72882DT080AA0 |
| EM DT16 | DIGITAL I/O SM DT16, 8 DI / 8 DO | 6ES72882DT160AA0 |
| EM DT32 | DIGITAL I/O SM DT32, 16 DI / 16 DO | 6ES72882DT320AA0 |
| EM AE04 | ANALOG INPUT SM AI04, 4AI | 6ES72883AE040AA0 |
| EM AE08 | ANALOG INPUT SM AI08, 8AI | 6ES72883AE080AA0 |
| EM AM03 | ANALOG I/O SM 2AI/1AO | 6ES72883AM030AA0 |
| EM AM06 | ANALOG I/O SM AM06, 4AI/2AO | 6ES72883AM060AA0 |
| EM AQ02 | ANALOG OUTPUT SM AQ02, 2AO | 6ES72883AQ020AA0 |
| EM AQ04 | ANALOG OUTPUT SM AQ04, 4AO | 6ES72883AQ040AA0 |
| EM AR02 | 200SMART, ANALOG INPUT SM AR02 RTD, 2 AI | 6ES72883AR020AA0 |
| EM AR04 | 200SMART, ANALOG INPUT SM AR04 RTD, 4 channel | 6ES72883AR040AA0 |
| EM AT04 | 200SMART ANALOG INPUT SM AT04 TC, 4AI | 6ES72883AT040AA0 |
| DP01 | Profibus DP Slave | 6ES72887DP010AA0 |
