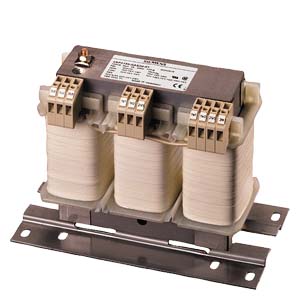

4AP2542-8CC40-0HA0 4AP25428CC400HA0 TRANSFORMER SITAS; PHASES-3; Power(KVA):1,6/6,9; Primary Voltage(V):Y500-440-380+/-20/D289- 254-220+/-11; Secondary Voltage(V):Y 400/ D 230; ISEC(A):2,3-4,02; F(HZ):50…60; VECTOR GR./SHIELD WNG.:IIIIII0/0; TA/ISOKL:40/B; IP00; TYPE OF TERMINALS:SCREW/TAB CONNECTION; INSTALLATION:SCREW; EN 61558-2-1, -2-2, -2-4 >UL/CSA-RECOGNIZED< >CONTROL CIRCUIT TRANSFORMER< >ISOLATION TRANSFORMER<
Overview of SIRIUS Transformers
SIRIUS Transformers – Professionals who always produce the right voltage
With the right transformer, the right voltage will be available at any conditions. Our transformers are the right choice for every application: They operate reliably, safely and worldwide under a wide range of different conditions.
Worldwide use is no problem thanks to cURus approval for the USA and Canada and conformance with all relevant national and international standards.
If you fail to find the right transformer in our range or if you have special requirements regarding dimensions or technical specifications, please get in touch with the contact address below.
Ordering transformers in customized versions or with special applications, please visit the link below for submitting your requests. http://www.plcskit.com/sending-an-inquiry-for-custom-designed-transformer
