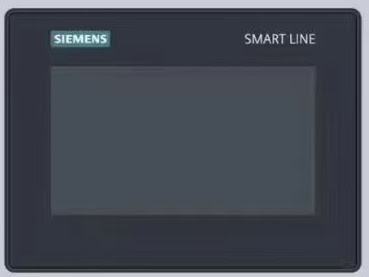

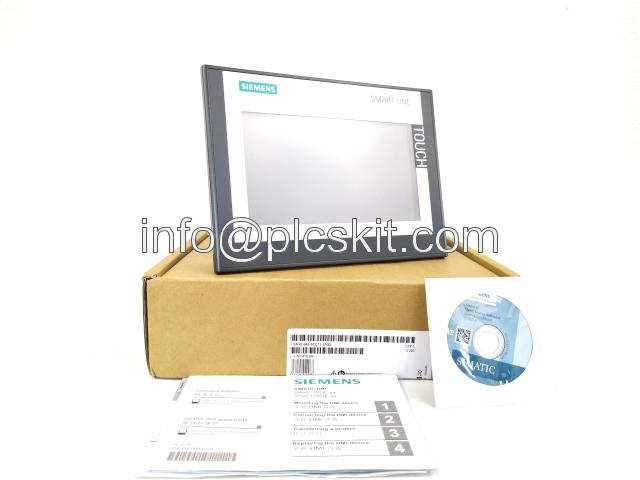

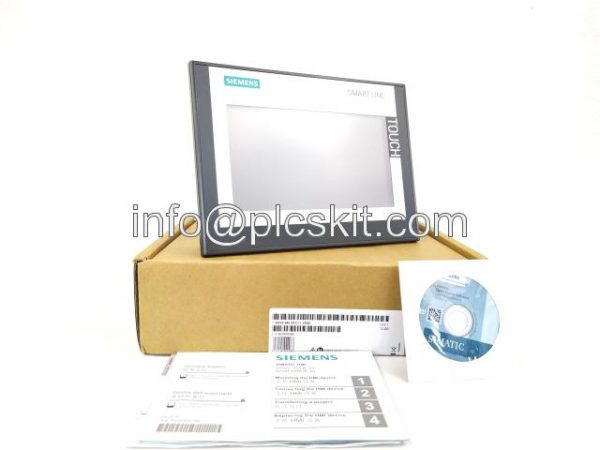

SIMATIC SMART LINE HMI 700 IE V4 Touch Screen 6AV6648-0DC11-3AX0

6AV6648-0DC11-3AX0 6AV66480DC113AX0

SIMATIC HMI Smart 700 IE V4, SMART Panel,

Touch operation, 7″ widescreen TFT display,

16 million colors,

RS422/485 interface,

Ethernet (RJ45) interface,

host USB type A

Sharing good things

Description

6AV6648-0DC11-3AX0 6AV66480DC113AX0

SIMATIC HMI Smart 700 IE V4, SMART Panel, Touch operation, 7″ widescreen TFT display, 16 million colors, RS-422/485 interface, Ethernet (RJ45) interface, host USB type A, RTC support, with CE certificate, configurable from WinCC flexible SMART; contains open-source software, which is provided free of charge see enclosed CD

HMI SMART LINE V4 is officially released.

HMI SMART LINE V4 opening dimensions remains the same as V3, you do not need to change the cabinet design when upgrading the solution, and it is fully compatible with HMI SMART LINE V3 projects. HMI SMART LINE V4 supports parallel communication between Ethernet and Serial Ports. For standard Modbus RTU protocol devices, HMI SMART LINE V4 can support as a gateway for data transmission and reception.

HMI SMART LINE V4 further new hardware features as below:

  • HMI SMART LINE V4 CPU upgrades to 800MHz, RAM upgrades to 256M, color upgrades to 16M colors.
  • HMI SMART LINE V4 supports secure boot, preventing tampering with FW files or altering flash content.
  • HMI SMART LINE V4 is designed with ventless back panel.

HMI SMART LINE V4 further new software features are showed as below:

  • HMI SMART LINE V4 adds form controls for data records.
  • HMI SMART LINE V4 provides SMART PLC dedicated diagnostic controls.
  • HMI SMART LINE V4 supports automatic extraction and import of variables from SMART PLC project files.
  • HMI SMART LINE V4 increases the number of recipies and data records significantly.
  • HMI SMART LINE V4 fully integrated with ProSave maintenance service tool.

Detailed ordering information can be found in the below table.

Ordering NumberModelProduct Description
6AV66480DE113AX0SMART 1000IE V4  10“, 16M colors, RS-422/485 interface, Ethernet RJ45 interface, USB 2.0 host, RTC, CE Certification, WinCC Flexible SMART V4
6AV66480DC113AX0SMART 700IE V4  7″, 16M colors, RS-422/485 interface, Ethernet RJ45 interface, USB 2.0 host,  RTC , CE Certification,  WinCC Flexible SMART V4

Smart Line V4 Engineering Software download

WinCC Flexible SMART V4 downland link:

Click the link to download the newest version WinCC Flexible SMART V4
