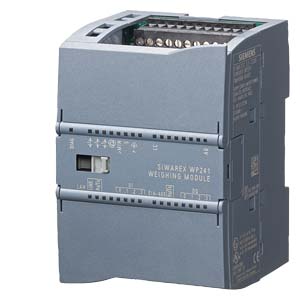

S7-1200 PLC SIWAREX WP241 belt weigher electronic 7MH4960-4AA01

SIEMENS SIWAREX WP241 belt weigher electronic (1 channel) for strain gauge load cells / full bridges (1-4mV/V) for SIMATIC S7-1200 or stand alone, RS485 and Ethernet-Interface, onboard I/O: 4 DI / 4 DO 1 AO (0/4…20mA)

Sharing good things

Description

Order No.: 7MH4960-4AA01 7MH49604AA01 SIWAREX WP241 belt weigher electronic (1 channel) for strain gauge load cells / full bridges (1-4mV/V) for SIMATIC S7-1200 or stand alone, RS485 and Ethernet-Interface, onboard I/O: 4 DI / 4 DO 1 AO (0/4…20mA)7MH49604AA01_datasheet_en

Overview

SIWAREX WP241

SIWAREX WP241 is a flexible weighing module for belt scales. The compact module is easy to install in the SIMATIC S7-1200 automation system. It can also be operated as a standalone module, i.e. without a SIMATIC CPU.



Benefits

SIWAREX WP241 offers the following key advantages:

  • Uniform design technology and consistent communication in SIMATIC S7-1200
  • Uniform configuration with TIA Portal
  • Operation without SIMATIC CPU possible
  • Direct connection of an operator panel via Ethernet
  • Four digital inputs and outputs, one analog output
  • Measurement of weight with a high resolution of ±4 million parts
  • Simple adjustment of belt scales using the SIWATOOL V7 program via the Ethernet interface – even without knowledge of SIMATIC
  • Replacement of module possible without renewed calibration of the scale
  • Use in hazardous area zone 2
  • Different calibration methods: With test weights, test chain, automatically or via material batch.
  • Specification of belt inclination angle
  • 6 totalization memories
  • Simulation of speed and belt load for test purposes
  • Comprehensive diagnostics functions



Application

SIWAREX WP241 is the optimal solution wherever belt scales are used that demand high accuracy, high user-friendliness, and flexible system integration. The typical applications of the SIWAREX WP241 are determining the current material flow rate, belt load and belt speed. Furthermore, 6 totalizers are available for evaluating the amount of material conveyed.
