11 22-MXP High Precision Slide Table (Recirculating Bearings)-Clean Room Copper Fluorine Silicone-free Series

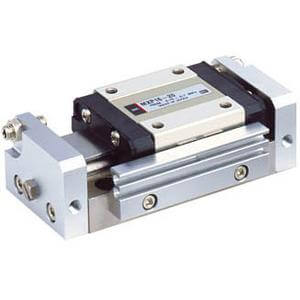

SMC High Precision Slide Table
11-22-MXP Fluorine Silicone-free Series
Recirculating Bearings-Clean Room Copper
Condition: New, Original or Alternate.

Sharing good things


The MXP is ideal for clean room applications and those that require high
precision movement in short travel situations. The precision slide table
has a machined guide with very tight tolerances that operates in
conjunction with highly accurate recirculating ball bearings. This slide is
capable of achieving parallelism within 0.02mm and non-rotation accuracy as
low as 0.03 degrees. Two of the mounting surfaces allow work to be held to
a tolerance +/-0.05mm plus the tolerance of the work piece. The slide
contains two pistons that operate independently to supply the movement of
the actuator.

– Precision air slide table, clean series
– Bore sizes: 6, 10, 12, 16 (mm)
– Strokes: 5mm through 30mm depending upon bore size
– With rubber or metal stopper or shock absorber
– Variety of switches with a variety of wire lead lengths

Download 11-22-MXP Datasheet by click the link Datasheet.
