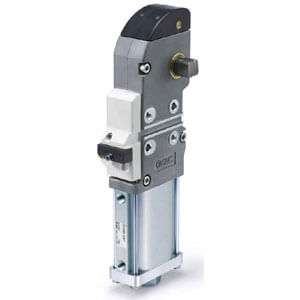

CKZ3N Aluminum Body NAAMS Power Clamp Cylinder

SMC Clamp Cylinder
CKZ3N Aluminum Body NAAMS Power

Condition: New, Original or Alternate.

Sharing good things


CKZ3N power clamp conforms to the NAAMS standard. The improved design
reduced weight by up to 39% with aluminum body. The rounded cover design
and release button with minimal protrusion, reduce weld spatter
accumulation. The arm opening angle ranges from 15° to 135° and can be
easily changed by replacing the stopper body. Available in 50 and 63 bore

– Complies with NAAMS standard (CKZ3N)
– 9 opening angles: 15, 30, 45, 60, 75, 90, 105, 120, 135
– 75 types of arm variations (CKZ3N)
– Metal cover and metal switch cassette options available
– Optional manual handle operator (X2568) available

Download CKZ3N Datasheet by click the link Datasheet.
