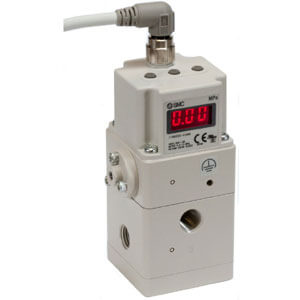

ITVH High Pressure Electro-Pneumatic Regulator 3.0 MPa

SMC High Pressure Electro-Pneumatic Regulator
ITVH 3.0 MPa

Condition: New, Original or Alternate.

Sharing good things


Series ITV electro-pneumatic and electronic vacuum regulators control
air/vacuum pressure steplessly in proportion to an electric signal. They
are light weight in design with a bright and easy to read LED display. The
monitor output is available either as analog output or switch output. The
ITV series is IP65 equivalent.

– Set pressure range: 0.2 to 2.0 MPa
– Maximum supply pressure: 3.0 Mpa
– Maximum flow rate: 3000 L/min (ANR)
– Power consumption: 3 W or less
– Linearity: ±1% F.S.
– Hysteresis: 1% F.S.
– Repeatability: ±1% F.S.
– Sensitivity: ±1% F.S.

Download ITVH Datasheet by click the link Datasheet.
