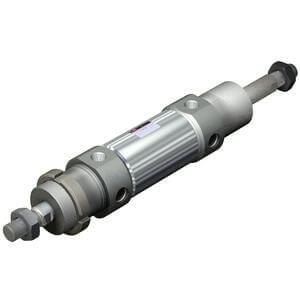

The C76 series air cylinders offer a simple, space saving design with high
dimensional accuracy, making these cylinders very easy to use. Large
spanner flats on the rod and head covers greatly simplify their
installation and positioning. Low friction and the standard elastomer
cushion rings allow piston speeds up to 1500mm/sec. Greater side loads are
allowed due to the close tolerance of the piston rod in the front-end bush.
– Standard, double acting, double rod
– Bore sizes (mm): 32, 40
– Max. operating pressure: 1.0MPa
– Rubber cushion or air cushion
– Rod boots available
Download C76W CD76W Datasheet by click the link Datasheet.
