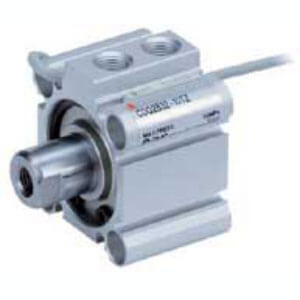

C(D)Q2-Z Compact Cylinder Single Acting Single Rod

SMC Compact Cylinder
CQ2-Z CDQ2-Z0Single Acting Single Rod

Condition: New, Original or Alternate.

Sharing good things


Standard single acting, single rod version of the CQ2 compact cylinder. The
CQ2 single acting is available in bore sizes from 12mm to 50mm. It comes
standard with male or female piston rod threads. It is possible to mount
auto switches on any of the 4 surfaces.

– Single acting, single rod, compact cylinder
– Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50
– Standard stroke range (mm): 5, 10, 20
– Port threads: M (12 to 25 bore); Rc, NPT or G (32 to 100 bore)
– Auto switch capable

Download CQ2-Z CDQ2-Z Datasheet by click the link Datasheet.
