C(D)RB1xW50~100 Rotary Actuator Vane Style

SMC Rotary Actuator
CRB1xW50~100 CDRB1xW50~1000Vane Style

Condition: New, Original or Alternate.

Sharing good things

Description

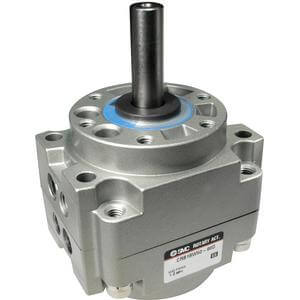

The CRB1 vane style rotary actuator is offered in 7 sizes (10-100mm).
Rotation angles of up to 270° is possible for the entire series. The double
vane style offered on the 90° and 100° rotation allows twice the torque of
the single vane. Bearings are used throughout the series to support thrust
and radial loads. In addition, rubber bumpers are used internally (except
for size 10) making this series highly reliable. Optional auto switches can
be moved anywhere along the circumference to allow mounting in a position
that is most appropriate for your specifications.

– *New Style* rotary actuator, vane type
– Compact, space saving body
– Direct mount applications possible
– Highly reliable
– Body side and axial direction ports
– Unrestricted auto switch mounting positions

Download CRB1xW50~100 CDRB1xW50~100 Datasheet by click the link Datasheet.
