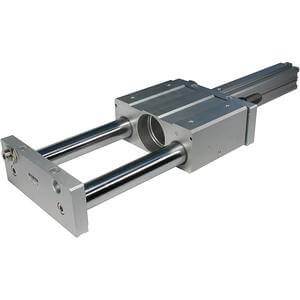

CXTM Platform Guide Rod Cylinder Slide Bearing

SMC Platform Guide Rod Cylinder
CXTM0Slide Bearing

Condition: New, Original or Alternate.

Sharing good things


The CXTM integrates a compact cylinder’s power source via a flexible
coupling to the carbon steel alloy slide bearing guides to isolate the load
bearing from the movement of the actuator’s rod and seals. Rubber bumpers
are standard with optional shock absorbers and stroke adjustment (X138).
The (M) carbon steel alloy slide bearing provides lateral stability
protecting it from side load impacts, suitable for stopping applications.

– Bore sizes: 12, 16, 20, 25, 32, 40 mm
– Standard adjustable stroke range: 10 mm (all bore sizes)
– X138 option, adjustable stroke range: 26 mm (12, 16 bore);
– 28 mm (20, 25 bore); 44 mm (32 bore); 40 mm (40 bore)
– Shock absorber option
– Auto switch capable

Download CXTM Datasheet by click the link Datasheet.
