Description

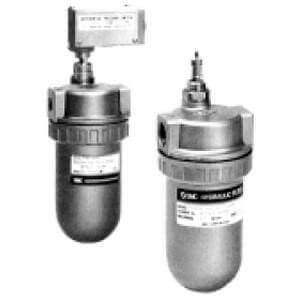

FH series suction filters are compact and lightweight. Designed with an
aluminum casted housing. Element can be replaced by simply opening the
cover to detach the element without touching the pipes. The filter can be
fitted with a differential pressure indicator which senses when the
element is becoming dirty, facilitating maintenance and helping to avoid
pump damage such as cavitations. The FHG series suction guard was designed
to prevent collected dust from falling into the tank. Since all dust is
eliminated during trial operation, it is not necessary to replace flushing
oil. Options include differential pressure indicator, differential
pressure indication switch, air breezer, and cap.
– Compact and lightweight due to an aluminum alloy cover
– Paper or micromesh element slides into place, making it easy to
install and remove
– Differential pressure indicator or differential pressure indication
switch can be selected
– Hydraulic fluid: Petroleum, water-glycol, emulsion, and phosphoric
ester
– Non-standard filtration available
Download FH150 Datasheet by click the link Datasheet.
