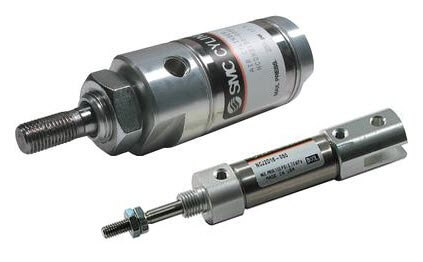

NC(D)M Stainless Steel Cylinder Double Acting Single Rod Standard

SMC Stainless Steel Cylinder
NCM NCDM0Double Acting Single Rod Standard

Condition: New, Original or Alternate.

Sharing good things


Standard double acting single rod version of our NCM stainless steel
cylinders. A wear ring extends the seal life and a bronze rod bushing is
standard on all bore sizes. The NCM is available in 3 mounting styles
(front nose, double end and rear pivot). The NCM is auto-switch capable
without any change in cylinder dimension. Bore sizes range from 7/16″ to 2″
and standard strokes from 1/2″ to 12″.

– Double acting single rod
– Bore sizes (inch): 7/16, 9/16, 3/4, 7/8, 1 1/16,1 1/4, 1 1/2, 2
– Mounts: nose, rear, end, rod, block
– Variety of switches and lead wire lengths
– Optional Rod Boot

Download NCM NCDM Datasheet by click the link Datasheet.
