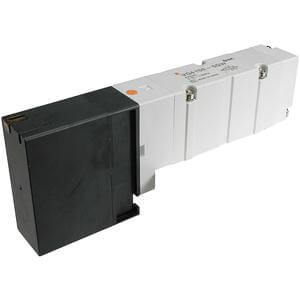

VQ4x5x 4000 Series 5 Port Solenoid Valve Plug Lead Base Mounted

SMC 5 Port Solenoid Valve
VQ4x5x 4000 Series Plug Lead
Base Mounted
Condition: New, Original or Alternate.

Sharing good things

Description

VQ valves are ideal for applications requiring high speed, frequent
operation, stable response time and long service life. Innovative mounting
methods allow valves to be changed without entirely disassembling the
manifold. Built-in one-touch fittings save piping time and labor.

– Fluid: air/inert gas
– Operating pressure range: 0.15 – 1.0MPa
– Effective area mm 2 (Cv):
2 position metal seal 36.0 (2.0);
2 position rubber seal 39.6 (2.2)
3 position metal seal 19.8 – 36.0 (1.1 – 2.0);
3 position rubber seal 21.6 – 39.6 (1.2 – 2.2)
– Coil rated voltage: 12, 24VDC;
100, 110, 200, 220VAC
– Response time (ms) standard 1W:
metal seal 12 or less to 55 or less;
rubber seal 15 or less to 62 or less
– Ambient & fluid temperature: metal seal -10 to 50°C;
rubber seal -5 to 50°C
– Optional IP65 enclosure

Download VQ4x5x Datasheet by click the link Datasheet.
