LEYG Electric Actuator Guide Rod Type AC Servo Motor (100 200W)

SMC Electric Actuator
LEYG Guide Rod Type AC Servo Motor 100 200W

Condition: New, Original or Alternate.

Sharing good things

Description

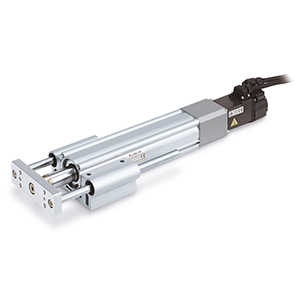

The AC servo version of the LEYG guided rod features an AC servo motor
instead of a DC version. The actuator features a bolt-on bearing block with
double guide rods that resist rotational and lateral loads. The AC servo
motor enables higher speed, acceleration, and pushing force. The drivers
are pulse input type, with both incremental and absolute encoder options
and 17- or 18-bit resolution.

****We are currently experiencing long lead times for “T” style motors.
Please consult with your SMC Representative for alternatives.****

– Body sizes: 25, 32
– Maximum work load: 60 kg (horizontal); 46 kg (vertical)
– Maximum pushing force: 736 N
– Maximum stroke: 300 mm
– Positioning repeatability: ±0.02 mm (±0.01mm high precision option)
– Encoder resolution: 17-bit (S motor), 22-bit (T motor), 20-bit (V
motor)
– Bearing types: sliding bushings or ball bushing bearings
– Maximum allowable rotational torque: 5.76 N•m (sizes 32, 40; stroke
dependent)
– Non-rotating accuracy of plate: ±0.05° (slide bearing); ±0.06° (ball
bushing bearing)

Download LEYG Datasheet by click the link Datasheet.
