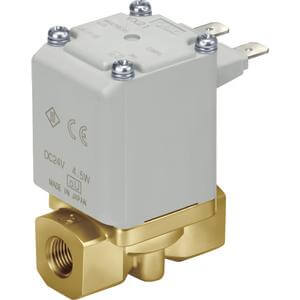

25A-VX2x2 Single Unit Direct Operated 2 Port Solenoid Valve for Water

SMC Single Unit
25A-VX2x2 Direct Operated 2 Port Solenoid Valve for Water

Condition: New, Original or Alternate.

Sharing good things

Description

The VX2 for water is available with brass and stainless steel body. Three
body sizes are available, with port size ranges from 1/8″ to 1/2″. NBR
seal is used as standard and FKM or EPDM is optional. Flow rate ranges from
Cv of 0.23 to 2.21.

– IP65 enclosure
– Normally Closed and Normally Open type available, Class B coil
– Special construction improves service life when compared with current
shading coil
– Power consumption: size 1 – 4.5w; size 2 – 7w; size 3 – 10.5w
– Body material: C37 (brass), stainless steel
– Copper and Zinc Free

Download 25A-VX2x2 Datasheet by click the link Datasheet.
