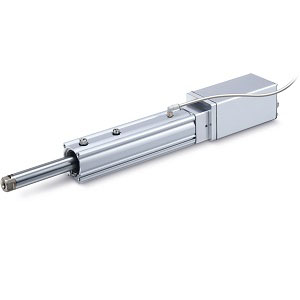

LEY-X8 Battery-less Absolute Encoder Dust-proof Water-jet-proof IP67

SMC Battery-less Absolute Encoder
LEY-X8 Dust-proof Water-jet-proof IP67

Condition: New, Original or Alternate.

Sharing good things


The X8 option is a dust-proof and water-jet-proof specification equivalent
to IP67. This spec is achieved with the addition of several unique
features above the standard LEY. The motor is sealed within an aluminum
cover, fitted with M-type metal cable connectors. The rod passes through a
scraper and employs a lubrication retainer to prevent oil film washout.
Futher, grease supply holes are also provided. The body extrusion includes
a vent hole and fitting to balance internal pressure so that dust and water
are not drawn in. The 24VDC motor includes a battery-less absolute
encoder. This encoder allows the actuator to be powered down without
losing its positional awareness. The controllers’s operational and
positional step data can be accessed through several fieldbus protocols,
IO-Link, or parallel I/O. Available in body sizes 25, 32, and 40.

– Same load and performance as standard LEY
– IP67 environmental protection rating
– Sealed aluminum motor cover with metal cable connectors
– Rod scraper with lube retainer
– Grease supply holes
– Body vent hole

Download LEY-X8 Datasheet by click the link Datasheet.
